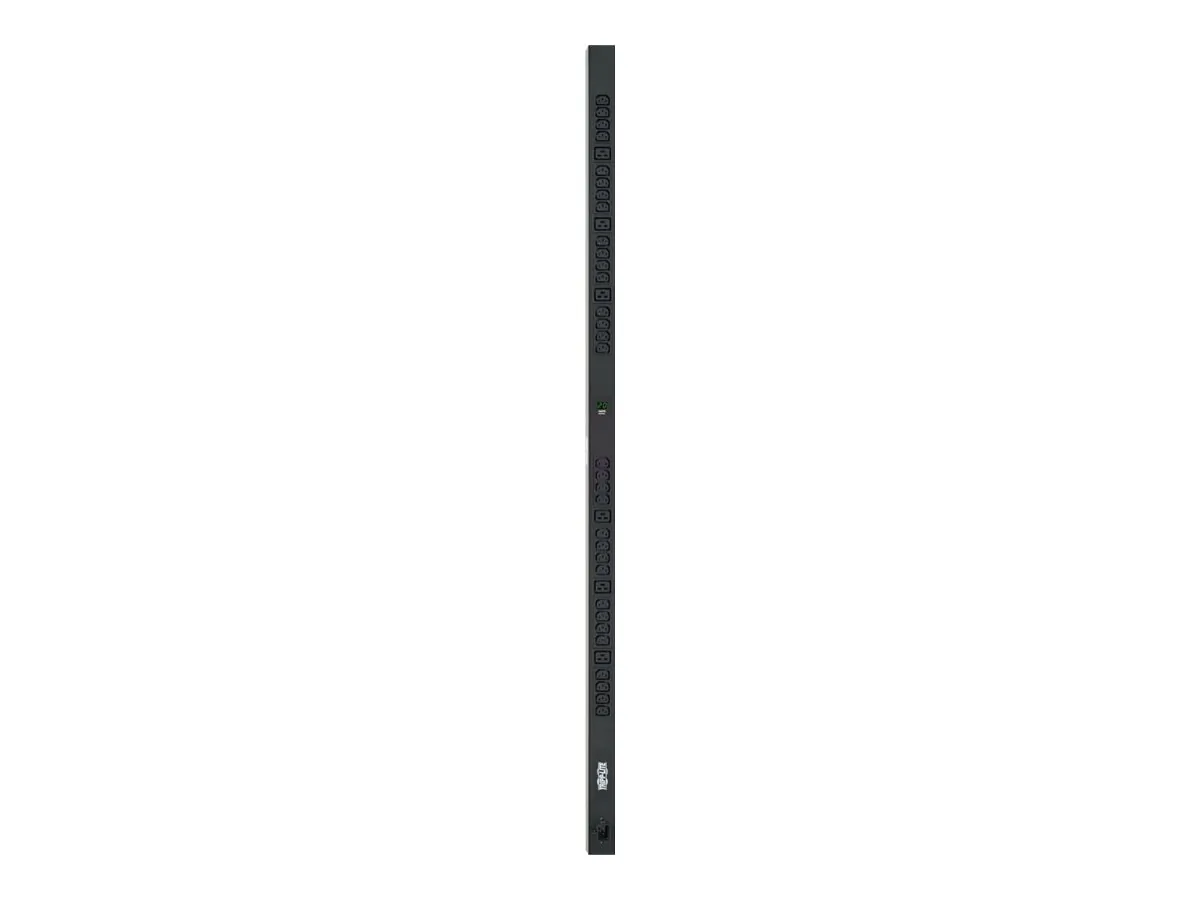

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more.

Model Type :Metered

PDU Type :Metered

OUTPUT
Frequency compatibility :50 / 60 Hz
Output nominal voltage :200, 208, 230, 240V
Overload protection :Outlets are arranged in a single unbreakered load bank
Outlet quantity / type :38 total (6 C19, 32 C13) INPUT
PDU Input Voltage :200 208 230 240
Maximum Input Amps (A) :20
Input connection type :L6-20P detachable cordset, C20 inlet available
PDU Plug Type :NEMA L6-20P IEC-320 C20
Input cord length (ft.) :10
Phase :Single-Phase LEDS ALARMS and SWITCHES
Switches :n/a
Front panel LEDs :Includes built-in 2-character LED meter to display whole PDU power consumption
Material of construction :Aluminum
Style :Vertical Rackmount, Wallmount, Raceway, Workbench
Form factors supported :0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor :Vertical (0U)
Certifications :Tested to UL60950-1 (USA, Canada), NOM (Mexico), CE (IEC 60950) Item Dimension (L"xW"xH"):
4.75 x 3.5 x 64.5

Weight:
6.46 lb

Warranty Information
Lifetime Limited
