Tripp Lite, UPS, 550VA, 120V, 300W, AVR, Desktop, Compact, 8 x 5-15R Outlets, USB, RJ11
  • Cost: $108.89
  • Quantity: 84
  • Free Shipping
  • Views:
  • Sold and Shipped By: Aztek Computers

The line-interactive AVR550U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.



  • UPC Code: 037332211453
  • UPS Type: Line-Interactive
  • Input Phase: Single-Phase
  • Rated input current (Maximum Load): 6A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P
  • Input Circuit Breakers: 7A
  • UPS Input Cord Length (ft.): 5
  • Recommended Electrical Service: 15A 120V
  • Output Capacity (VA): 550
  • Output Capacity (kVA): 0.55
  • Output Capacity (Watts): 300
  • Output Capacity (kW): 0.3
  • Nominal Voltage Details: 120v nominal output in battery mode
  • Frequency Compatibility: 50 / 60 Hz
  • Output Voltage Regulation (Line Mode): 120V (+6%/-12%)
  • Output Voltage Regulation (Battery Mode): 120V (r10%)
  • UPS Output Receptacles (Surge Suppression Only): 4 UPS outlets, 4 surge-only outlets
  • Output AC Waveform (AC Mode): Pure sine wave
  • Output AC Waveform (Battery Mode): PWM sine wave
  • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
  • Output Receptacles: (8) 5-15R
  • Battery Type: Valve Regulated Lead Acid (VRLA)
  • Runtime Full Load (min.): 2 min. (300W)
  • Runtime Half Load (min.): 9 min. (150W)
  • DC System Voltage (VDC): 12
  • Battery Recharge Rate (Included Batteries): 8 hours (10% to 90%)
  • Battery Access: Battery access door
  • Internal UPS Replacement Battery Cartridge: IMPORTANT BATTERY REPLACEMENT INFORMATION > If the original battery inside your AVR550U UPS has a rating of 12V 7AH, please order Tripp Lite RBC51 (quantity 1) replacement battery; If the original battery inside your AVR550U UPS has a rating of 12V 3.6AH, please order Tripp Lite RBC36H (quantity 1) replacement battery; If the original battery inside your AVR550U UPS has a rating of 12V 5AH, please contact Tripp Lite for assistance
  • Battery Replacement Description: Replaceable internal batteries (see manual)
  • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
  • Overvoltage Correction: Input voltages between 128 and 145 are reduced by 15%
  • Undervoltage Correction: Input voltages between 89 and 108 are boosted by 18%
  • Switches: Power off/on switch
  • Audible Alarm: UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
  • LED Indicators: 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions (see manual)
  • UPS AC Suppression Joule Rating: 316
  • UPS AC Suppression Response Time: Instantaneous
  • UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
  • EMI / RFI AC Noise Suppression: Yes
  • Primary Form Factor: Desktop
  • Installation Form Factors Supported with Included Accessories: Tower; Ultra-compact desktop; Wallmount
  • Primary UPS Depth (mm): 305
  • Primary UPS Height (mm): 110
  • Primary UPS Width (mm): 163
  • Shipping Dimensions (hwd / in.): 6.00 x 9.30 x 14.70
  • Shipping Weight (lbs.): 13.11
  • UPS Housing Material: ABS
  • UPS Power Module Dimensions (hwd, in.): 4.33 x 6.4 x 12
  • UPS Power Module Weight (kg): 6.21
  • UPS Power Module Weight (lbs.): 13.7
  • Unit Weight (lbs.): 13.110
  • Operating Temperature Range: 32r to 104rF (0r to 40rC)
  • Storage Temperature Range: 5r to 113rF (-15r to 45rC )
  • Relative Humidity: 0 to 90%, non-condensing
  • AC Mode BTU / Hr. (Full Load): 61
  • AC Mode Efficiency Rating (100% Load): >95%
  • Operating Elevation (ft.): Up to 10,000 ft.
  • Operating Elevation (m): Up to 3000m
  • PowerAlert Software: For local monitoring via the UPSrs built-in communication ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
  • Communications Cable: USB interface cable included
  • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
  • Network UPS Tools (NUT) Compatibility: NUT compatible. See a full list of NUT compatible Tripp Lite UPS systems at https://networkupstools.org/stable-hcl.htmlrmanufacturer=Tripp%20Lite
  • Network Management Card Description: Network management not supported
  • Communications Interface: USB (HID enabled)
  • Transfer Time: 6 milliseconds typical (10 milliseconds max)
  • Low Voltage Transfer to Battery Power (Setpoint): 89
  • High Voltage Transfer to Battery Power (Setpoint): 145
  • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
  • High Availability UPS Features: Automatic Voltage Regulation (AVR); Surge/noise protection
  • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

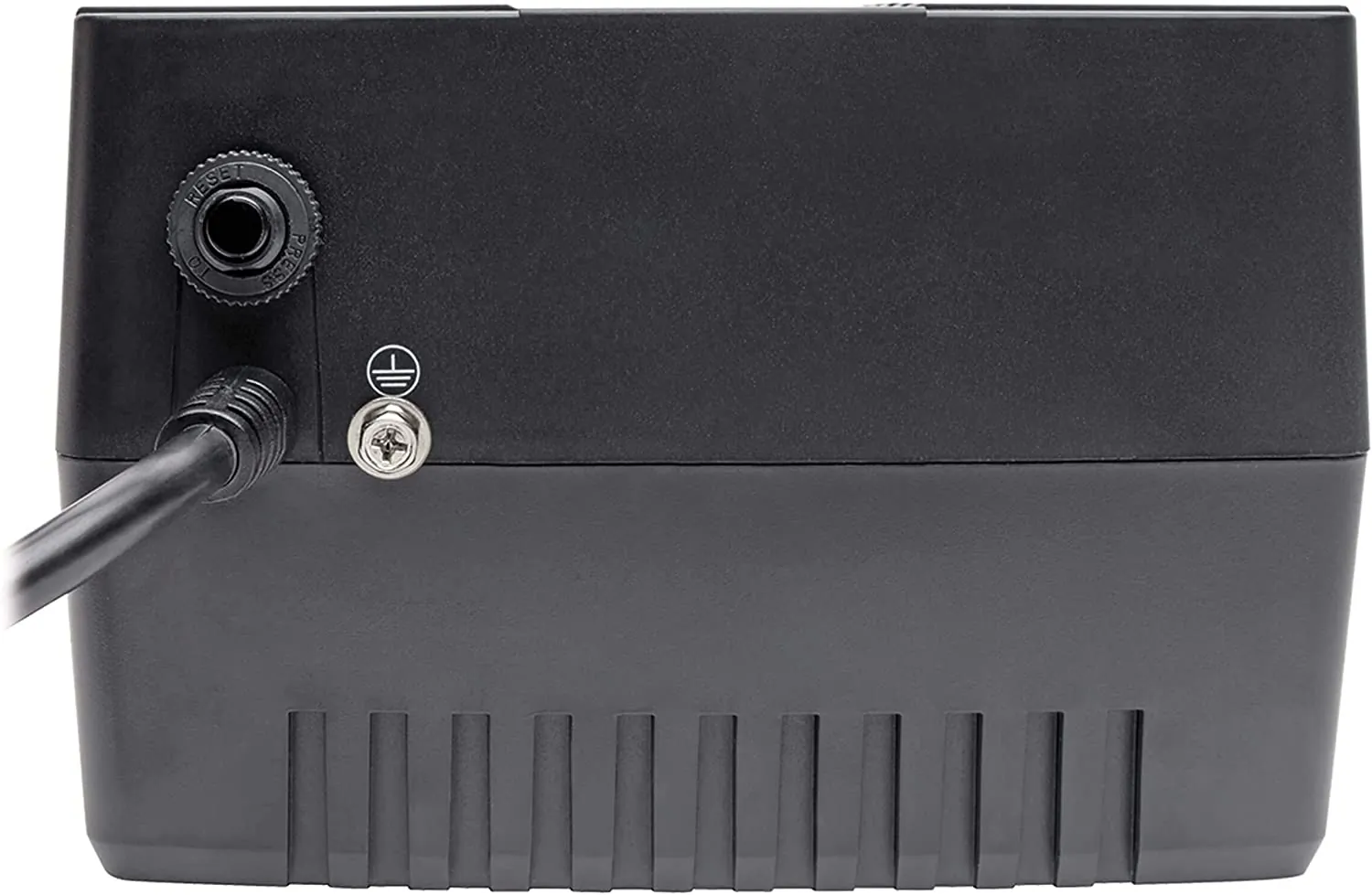

  • Grounding Lug: Includes side-panel grounding lug
  • Product Certifications: RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
  • Product Compliance: RoHS; FCC Part 15 Class A (USA)
  • Product Warranty Period (U.S. & Canada): 3-year limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $100,000 Ultimate Lifetime Insurance

General Information

Manufacturer:Tripp Lite
Manufacturer Part Number:AVR550U
Manufacturer Website Address:http://www.tripplite.com
Brand Name:Tripp Lite
Product Series:AVR
Product Name:AVR 550VA Desktop UPS
Marketing Information:

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.


Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

AVR:Yes
AVR Range:Boost +18% / Buck -15%
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:8 x NEMA 5-15R
Number of Battery & Surge Outlets:4
Number of Surge-only Outlets:4
Dataline Protection:RJ-11
Cord Length:6 ft
Transfer Time:6 ms
EMI/RFI Noise Filter:Yes
Phase:Single Phase
Energy Saving:Greater than 95% efficiency - GREEN UPS
Application/Usage:

  • Printer
  • Speaker
  • Computer
  • Router
  • TV
  • Blu-ray Player
  • Gaming Console
  • ATM
  • Security System
  • Digital Signage
  • Media Center
  • Home/Office
  • Home Theater



Power Description

Load Capacity:550 VA/300 W
Input Voltage:120 V AC
Output Voltage:

  • 110 V AC
  • 115 V AC
  • 120 V AC


Input Current:12 A
Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Pulse-width Modulated Sine Wave
Surge Energy Rating:316 J

Management

Alarm:

  • Battery Backup
  • Low Battery
  • Overload
  • Replace Battery
  • Fault



Controls/Indicators

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions



Interfaces/Ports

USB:Yes
USB (HID Compliant) Port:Yes

Battery Information

DC System Voltage:12 V DC
Backup/Run Time (Full Load):2 Minute
Backup/Run Time (Half Load):9 Minute
Battery Life:6 Year
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes

Environmental Conditions

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:10000 ft

Physical Characteristics

Color:Black
Height:4.3"
Width:6.4"
Depth:12"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):13.69 lb

Miscellaneous

Package Contents:

  • AVR 550VA Desktop UPS
  • USB cable
  • Owner's manual


Additional Information:

  • Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
  • High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
  • Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
  • Switches: Combination power off / on / self-test push button switch
  • Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
  • WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
  • Supports entry-level PC systems up to 17 minutes during blackout conditions

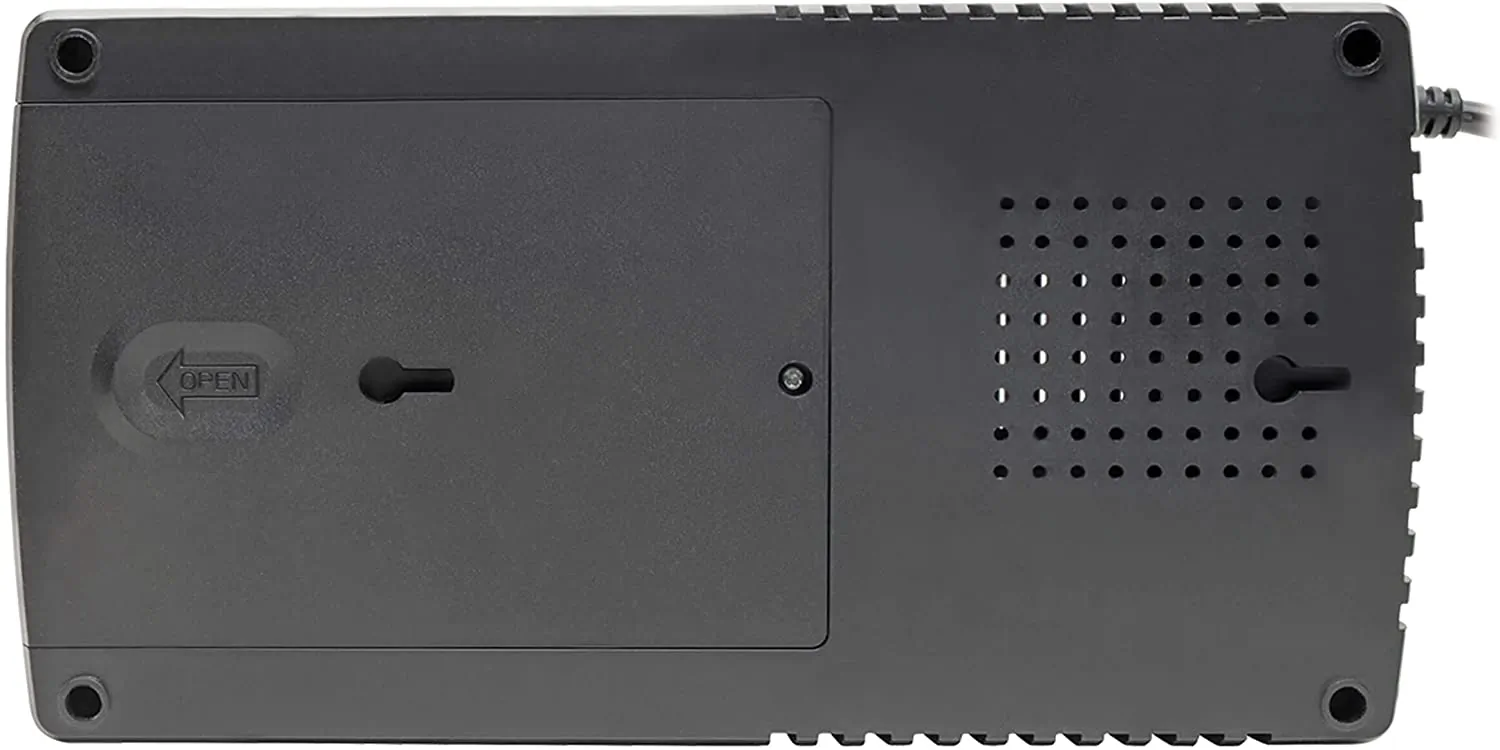

  • Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation

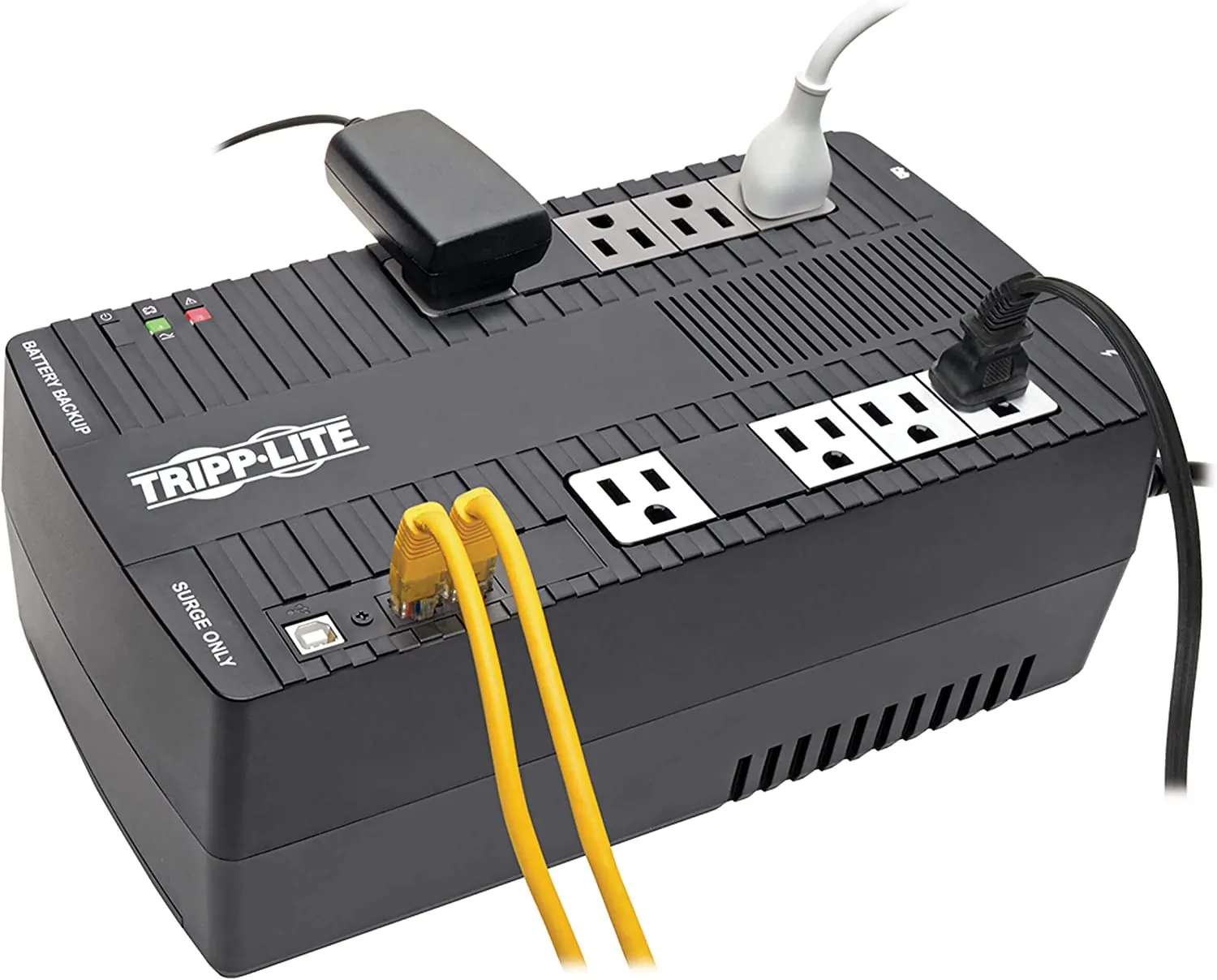

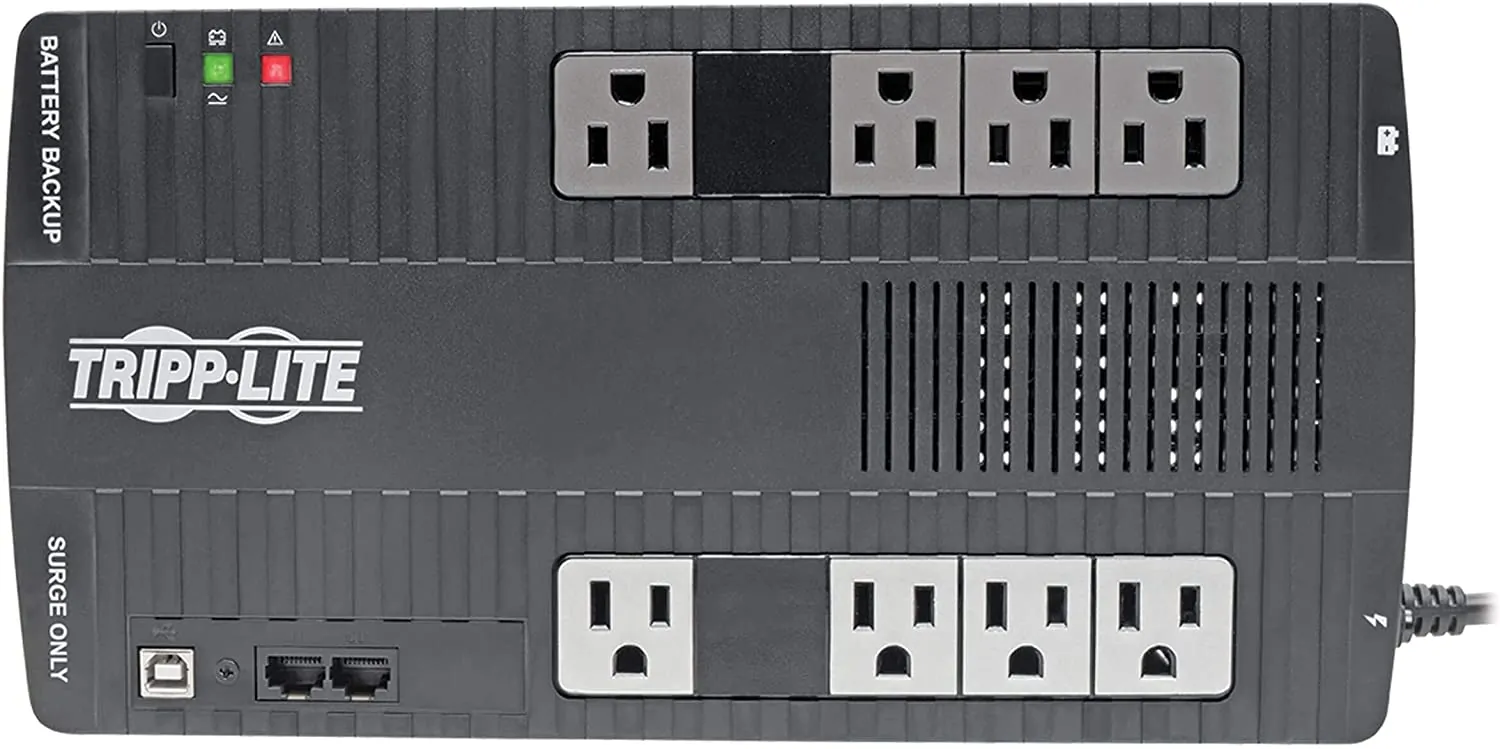

  • 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
  • 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
  • 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux


Certifications & Standards:

  • Tested to UL1778 (USA)
  • cUL1778 (Canada)
  • NOM (Mexico)
  • FCC Class B (Emissions)
  • FCC Part 68
  • Industry Canada (Telecommunications)


Software Included:PowerAlert UPS monitoring software
Recycled:No
Assembly Required:No
Environmentally Friendly:Yes
Environmental Certification:RoHS
Country of Origin:United States

Warranty

Limited Warranty:3 Year Lifetime
Additional Warranty Information:

  • 2-year warranty.

  • 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
