General Information
Manufacturer:Tripp Lite
Manufacturer Part Number:ECO850LCD
Manufacturer Website Address:http://www.tripplite.com
Brand Name:Tripp Lite
Product Series:ECO
Product Model:ECO850LCD
Product Name:850VA Ultra-compact Green LCD UPS Systm
Marketing Information:
Ultra-compact, green UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99 percent, this UPS offers energy savings plus cooler operation by limiting UPS power consumption. Interactive LCD screen displays operating conditions and lets you change settings. Design also features six battery-supported outlets for computer and peripherals plus six surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories. Built-in, single-line, tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software enables unattended system shutdown without data loss in the case of an extended power failure.
Packaged Quantity:1 Each
Product Type:Standby UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:12 x NEMA 5-15R
Number of Battery & Surge Outlets:6
Number of Surge-only Outlets:6
Dataline Protection:RJ-11
Protection Type:
Transfer Time:6 ms
EMI/RFI Noise Filter:Yes
Phase:Single Phase
Application/Usage:
- Home/Office
- Media Center
- Kiosk
- Desktop Computer
- Home Theater
- Digital Signage
- Router
- Printer
- TV
- Blu-ray Player
- Gaming Console
- ATM
- Security System
Power Description
Load Capacity:850 VA/425 W
Input Voltage:120 V AC
Output Voltage:
Input Current:10 A
Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Pulse-width Modulated Sine Wave
Surge Energy Rating:316 J
Management
Alarm:
- Battery Backup
- Fault
- Low Battery
- Overload
- Replace Battery
Controls/Indicators
Status Indicators:
Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity
Interfaces/Ports
USB:Yes
USB (HID Compliant) Port:Yes
Battery Information
DC System Voltage:12 V DC
Backup/Run Time (Full Load):2.30 Minute
Backup/Run Time (Half Load):9 Minute
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes
Environmental Conditions
Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Physical Characteristics
Color:Black
Height:3.5"
Width:5.1"
Depth:12.2"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):6.81 lb
Miscellaneous

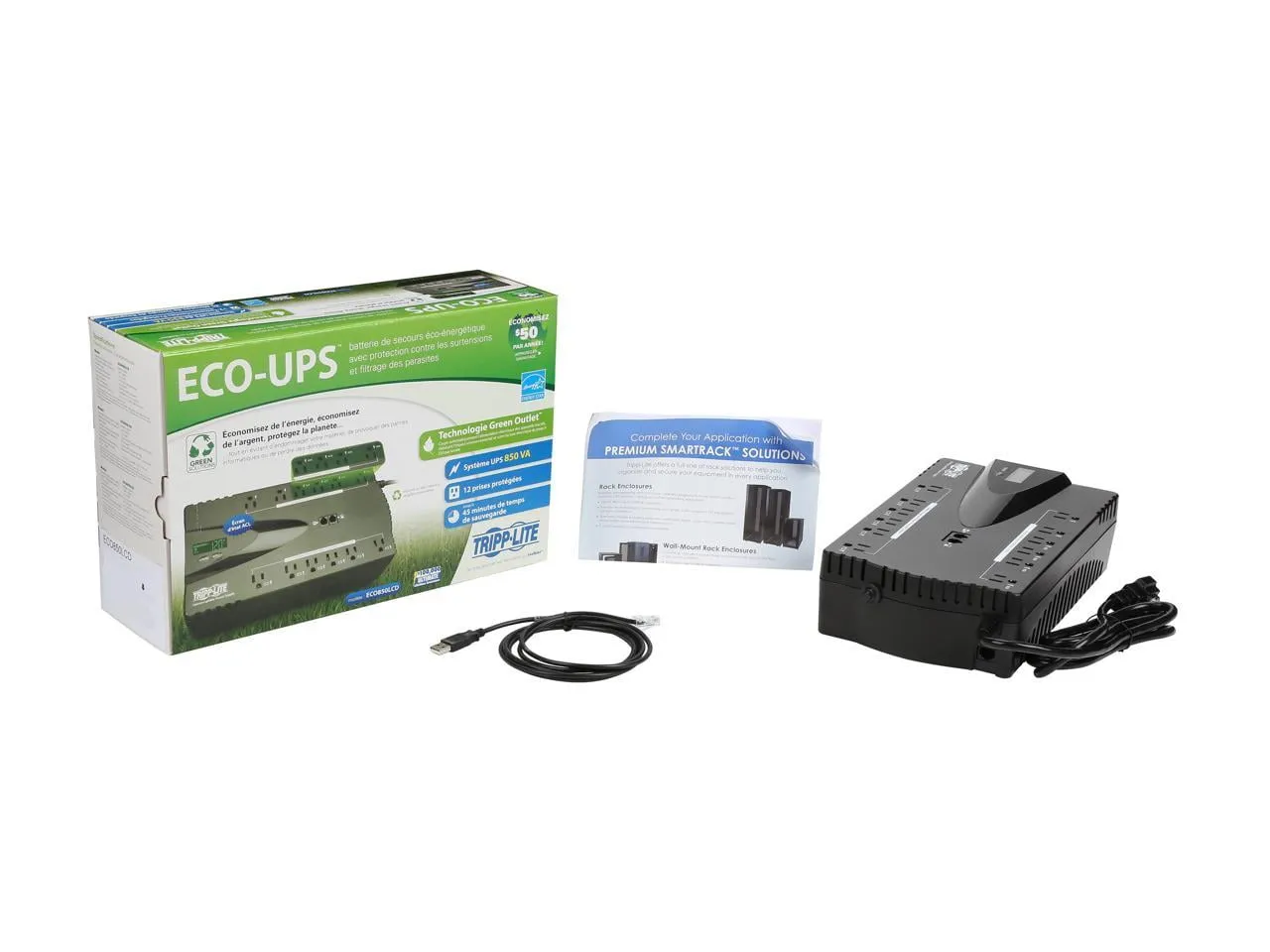

Package Contents:
- ECO850LCD 850 VA Desktop UPS
- USB Cable
- Instruction Manual
Certifications & Standards:
UL Listed Certification
Recycled:No
Assembly Required:No
Energy Star:Yes
Environmentally Friendly:Yes
Environmental Certification:RoHS
Country of Origin:China
Warranty
Limited Warranty:3 Year
Additional Warranty Information:
3 year warranty.
- 100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).
