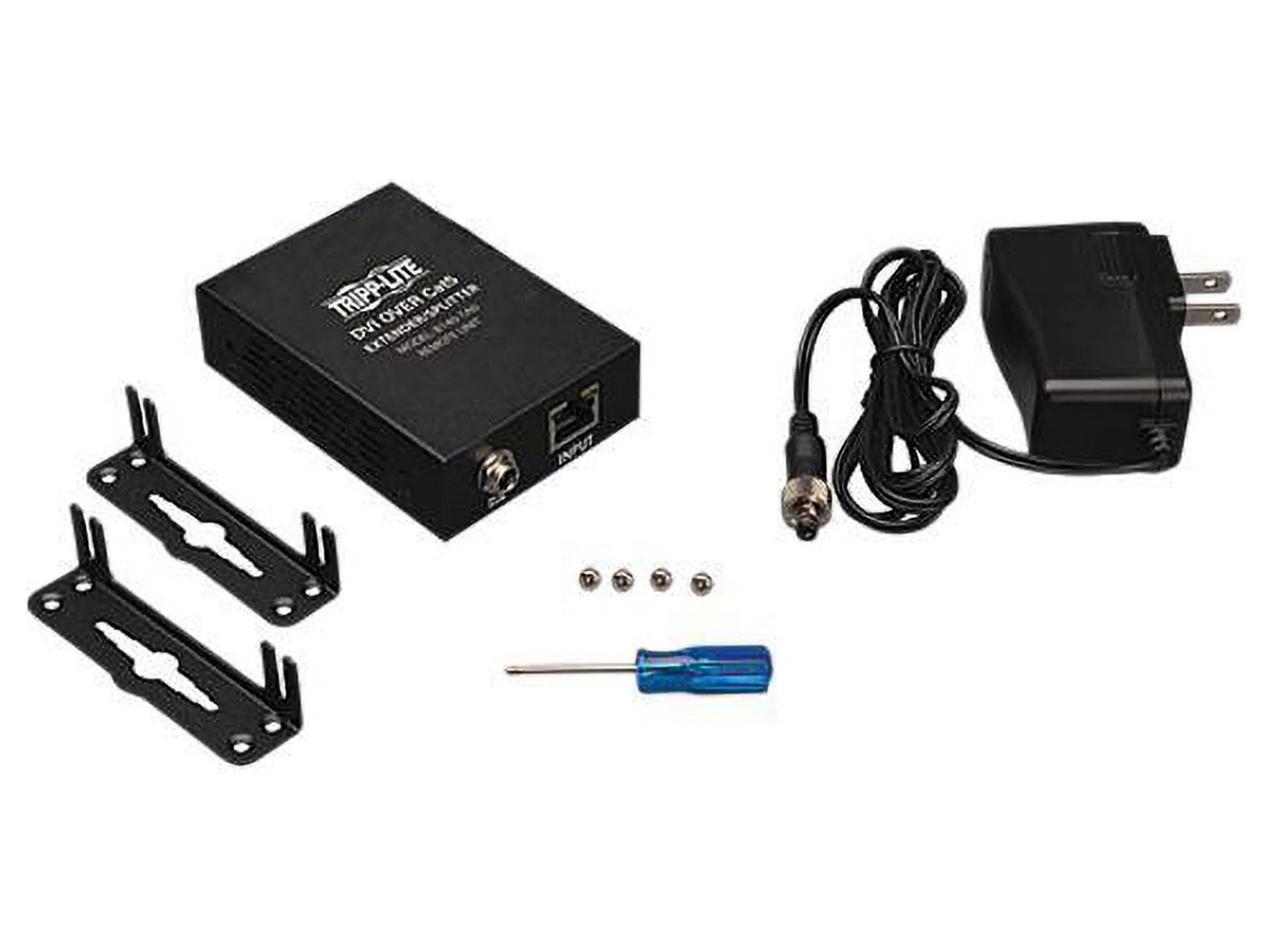

Interfaces/PortsInput Ports: 1 x RJ-45 Female NetworkOutput Ports: 1 x DVI-I Female Digital VideoEnvironmental ConditionsGeneral InformationProduct Type: Video ConsoleManufacturer Part Number: B140-1A0Manufacturer Website Address: www.tripplite.comManufacturer: Tripp LiteProduct Model: B140-1A0Product Name: B140-1A0 Video ConsoleBrand Name: Tripp LiteMiscellaneousPackage Contents B140-1A0 Video Console Mounting Hardware Screwdriver for Adjustment of Equalization External Power Supply Owner's ManualCompatibility Tripp Lite Extender/Splitter Local Units: B140-002 B140-004Physical CharacteristicsDimensions: 1" Height x 2.50" Width x 3.60" DepthPower DescriptionTechnical InformationGraphics Resolution: 1600 x 1200Operating Range: 20
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A, Output: 5V, 2A, 5 ft. PHYSICAL
Color
Black Included Mounting Accessories
Yes COMMUNICATIONS
Max 1024 x 768 Range (ft)
200 Max 480P Range (ft)
200 Max 1440 x 900 Range (ft)
200 Max 1080i Range (ft)
150 Max 1080P Range (ft)
150 Max 480i Range (ft)
200 Max 640 x 480 Range (ft)
200 Max 800 x 600 Range (ft)
200 Max 1600 x 1200 Range (ft)
200 Max 720P Range (ft)
200 CONNECTIONS
Ports
1 Side A - Connector 1
RJ45 (FEMALE) Side B - Connector 1
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) FEATURES and SPECIFICATIONS
Technology
DVI Item Dimension (L inchxW inchxH inch)
7 x 8 x 3
Weight
2.00 LB
Warranty Information
1-year limited warranty
