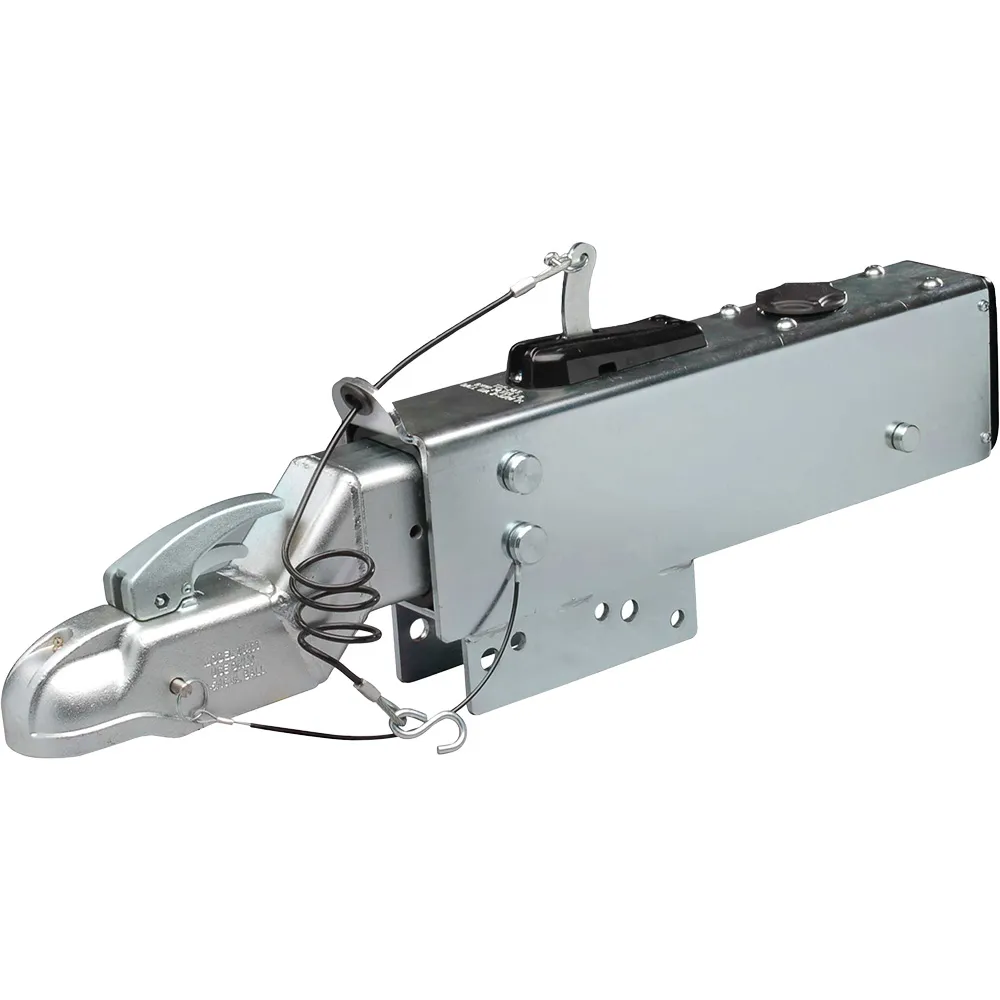

20,000lb Capacity Disc Brake Actuator with 2-5/16" Coupler
This actuator operates using the surge from the trailer as it moves toward the tow vehicle, automatically aligning the trailer brakes with the vehicle's brakes. When the trailer pushes against the vehicle, the actuator telescopes, activating the master cylinder to provide hydraulic pressure to the brakes. Featuring a built-in, sealed dampening shock absorber, it effectively manages the telescoping action against the hitch.
It is essential to adhere to brake regulations in your state, as laws may set minimum standards, potentially necessitating additional trailer brakes to comply with Gross Vehicle Weight Ratings (G.V.W.R.). Note that G.V.W.R. is the total weight rating for both the trailer and its load.
Consult your tow vehicle's owner's manual for information on towing capacity and recommendations prior to installing brakes or this actuator.
Maximum Actuator Capacity:
Gross Load: 16,500 lbs.
The effective in-service rating depends on the capacity of the ball, hitch, or the lowest-rated component of the trailer or tow vehicle, as well as the trailer manufacturer’s G.V.W.R. as indicated on the certification label, whichever is less.
